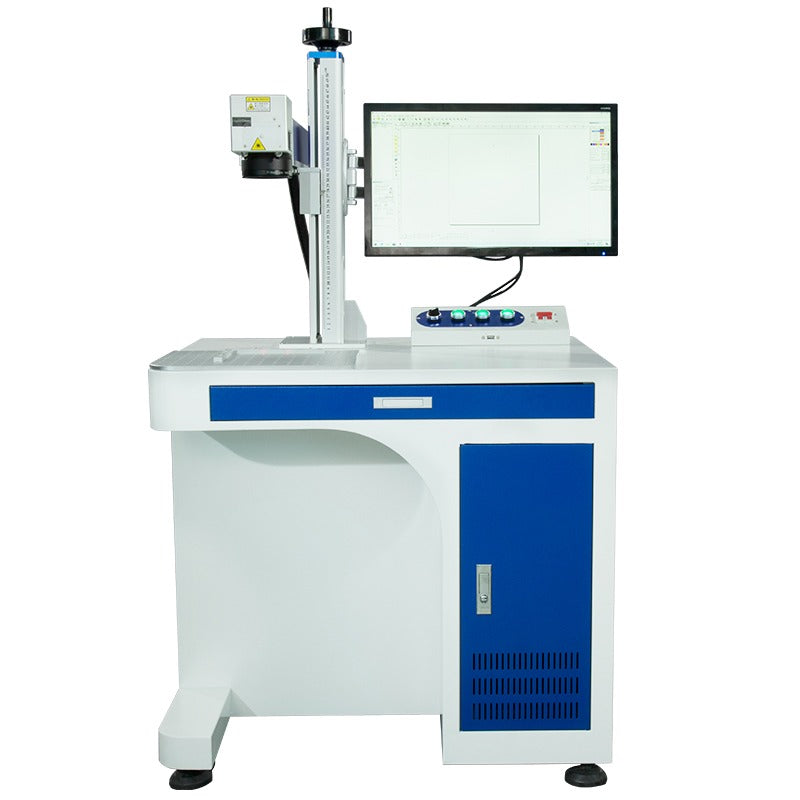

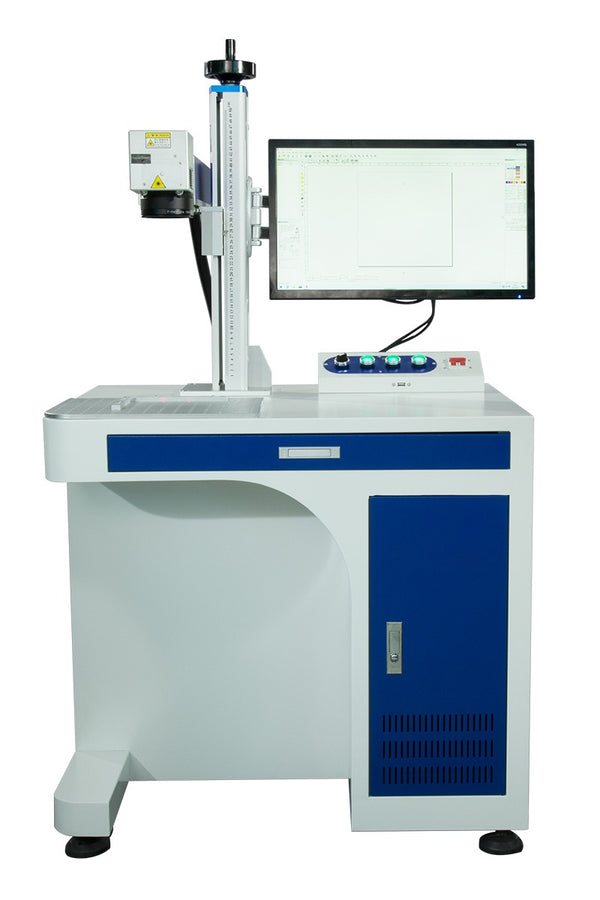

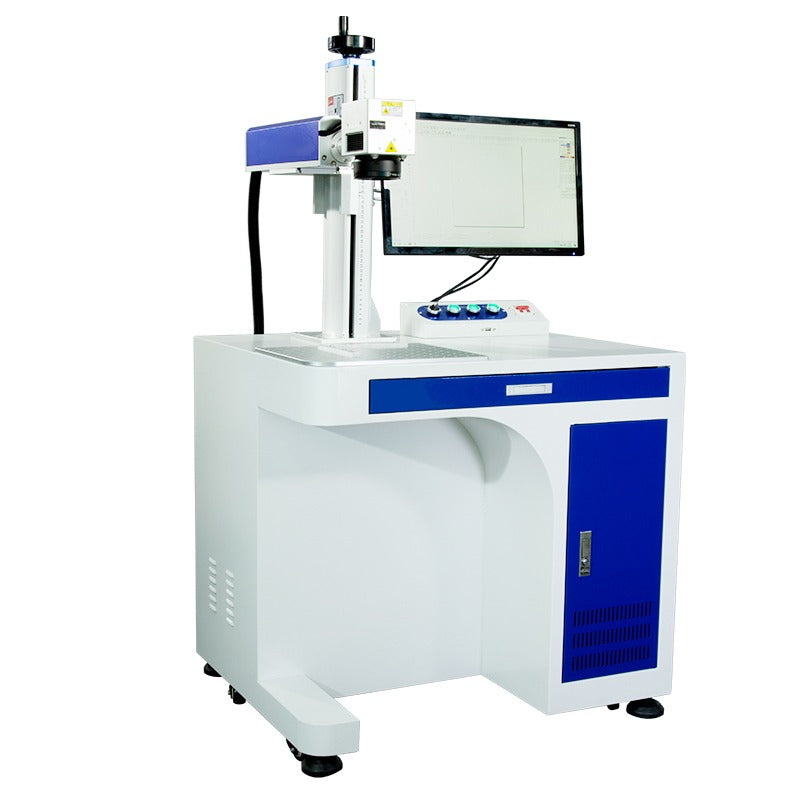

Table Fiber Laser Marking Machine （Blue）
Ships within 3–5 business days · DDP delivery · Shipping calculated at checkout
30-Day Return Policy & 2-Year After-Sales Support
- 20w - $1,100.00
- 30w - $1,300.00
- 50w - $2,100.00
- 100w - $3,100.00
Table Fiber Laser Marking Machine （Blue）
PRODUCT DETAILS
| Model | 20W / 30W / 50W / 100W |
|---|---|
| Working Area | 110×110mm / 150×150mm / 175×175mm / 200×200mm / 300×300mm |
| Repeatability Accuracy | ±0.01mm |
| Laser Wavelength | 1064nm |
| Laser Power | 20W / 30W / 50W / 60W / 100W |
| Laser Source | MAX / Raycus / JPT / IPG |
| Software | Ezcad / BSL / LightBurn |
| Supported Image Formats | .bmp, .gif, .jpg, .jpeg, .dxf, .dst, .ai |
| Estimated Laser Service Life | 100,000 hr |
| Rotary | Rotary / 3D Working Table / Pen Rotary |
Core Features & Technical Specifications
-
Robust Multifunctional Cabinet
-
Features a corrosion-resistant surface treatment for long-lasting durability.
-
Optimized airflow design ensures excellent heat dissipation and equipment stability.
-
Provides multi-level protection for internal components.
-
-
High-Speed Scanning Galvanometer
-
Performance: Powered by a premium imported motor with anti-shake compensation for steady-state operation.
-
Durability: IP-rated design – Waterproof, Dustproof, and Shockproof.
-
Speed: Delivers high-speed scanning with exceptional precision.
-
-
High-Transparency F-Theta Lens
-
Equipped with a non-glare, high-transmittance coating.
-
Wear-resistant and durable construction ensures clear focus and strong compatibility with various laser sources.
-
-
Premium Laser Source
-
Delivers high peak energy per beam with a stable focal point.
-
Energy-efficient design with fully adjustable power output.
-
-
Precision Aluminum Working Table
-
Constructed from integrated cut aluminum.
-
Surface is finely polished to ensure flatness and aesthetic appeal.
-
-
Concealed Lifting Shaft
-
Features a hidden rocker/handle mechanism for a sleek, modern look.
-
Built with imported materials to guarantee high positioning accuracy.
-
