Multi function welding machine 5 in 1 fiber handheld laser welding machine for metal
Ships within 3–5 business days · DDP delivery · Shipping calculated at checkout
30-Day Return Policy & 2-Year After-Sales Support
- 1500w - $4,138.00
- 2000w - $5,546.00
- 3000w - $7,381.00
Multi function welding machine 5 in 1 fiber handheld laser welding machine for metal
PRODUCT DETAILS
Product spotlights

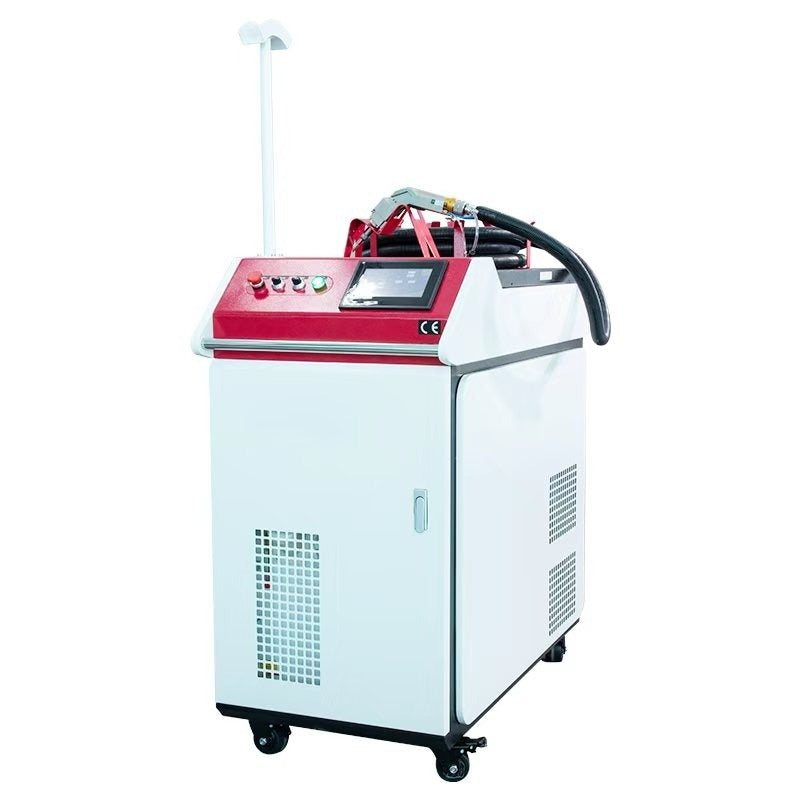

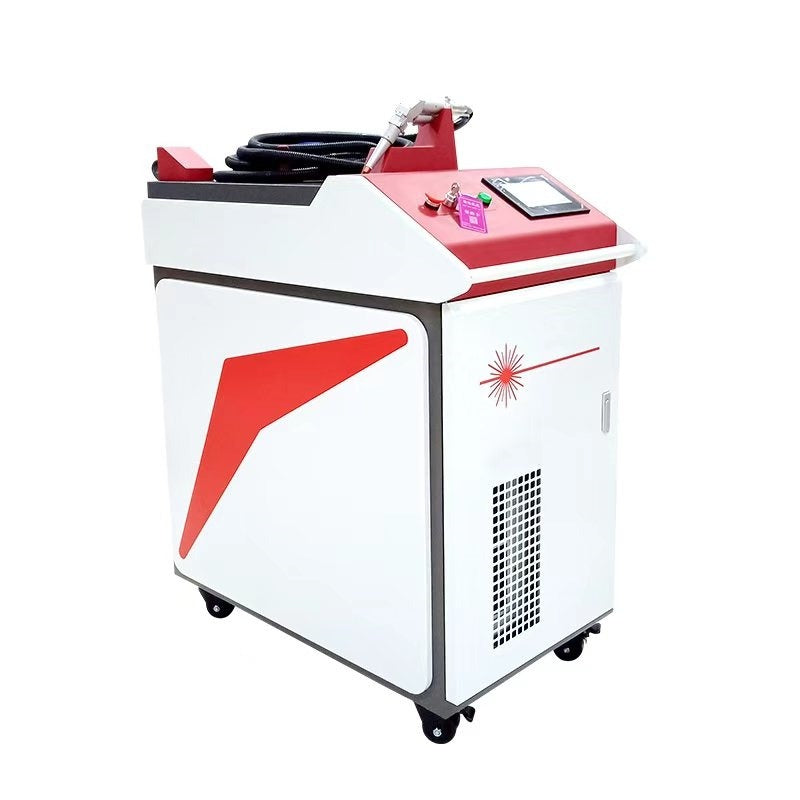

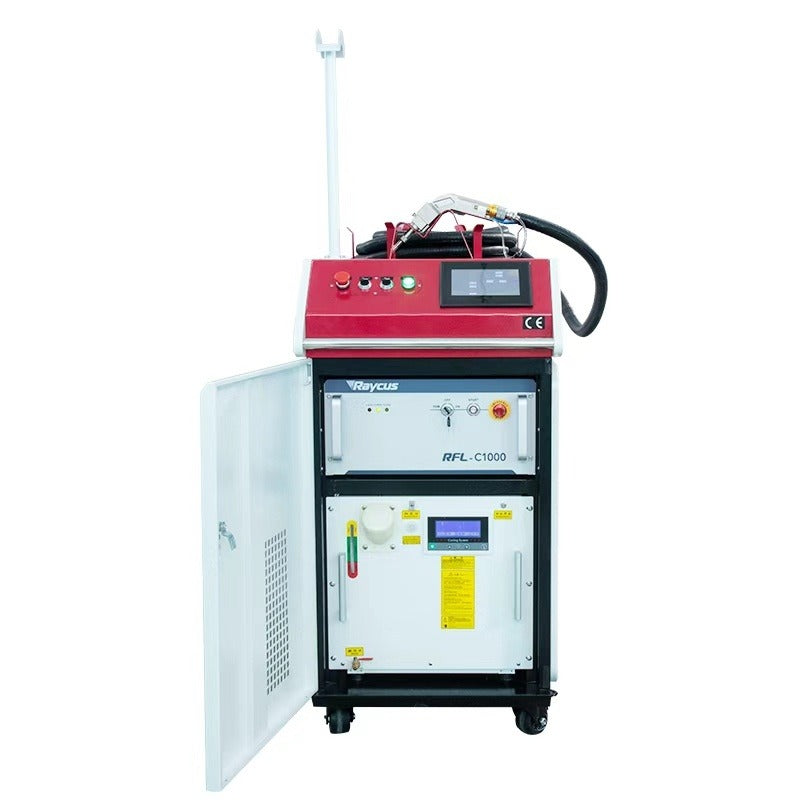

The Water Cooled Portable Handheld Fiber Laser Welding Machine offers 1000W/1500W/2000W/3000W power, water cooling, and a 10m fiber cable for welding thin stainless steel, carbon steel, galvanized sheets, and aluminum. Features include easy operation, precise welding, high safety, low energy consumption, and long life. It supports continuous or modulated modes, adjustable power, and nitrogen/argon gases.
This merchant is both a manufacturer and trader, offering full customization, design customization, and sample customization. Factory competitiveness includes product certification and SDK availability.
Product Overview
The 5-in-1 Laser Welding Machine integrates welding, cutting, cleaning, seam polishing, and marking into a single machine. It is designed for high-efficiency, high-precision metal processing in automotive, jewelry, mold making, and industrial manufacturing. This all-in-one solution saves space, reduces cost, and enhances production flexibility. Suitable for both small workshops and automated production lines.
Key Features
- All-in-One Functionality: Welding, cutting, cleaning, seam polishing, and laser marking.
- High-Precision Welding: Stable laser output ensures smooth and precise welds on stainless steel, carbon steel, aluminum, and copper.
- Advanced Control System: Easy operation via touch screen, compatible with popular design software.
- Fast & Efficient: High-speed processing reduces production time and increases throughput.
- Durable & Low Maintenance: Long-life laser source with minimal wear parts.
- Flexible Application: Handheld operation and automated integration supported.
- Safety & Reliability: Emergency stop, protective covers, and water-cooling system for stable operation.
Applications
- Automotive Parts: Exhaust pipes, body parts, and automotive accessories.
- Jewelry & Watches: Fine welding, engraving, and polishing for high-precision components.
- Metal Fabrication & Tools: Tool repair, sheet metal processing, and industrial components.
- Mold Industry: Mold welding, seam repair, and pre-treatment before coating.
- Consumer Electronics: Small parts welding, metal casing repairs, and precision marking.
Technical Specifications
| Item | Specification |
|---|---|
| Laser Type | Fiber Laser / Optional MAX / Raycus / JPT |
| Laser Power | 1500W / 2000W / 3000W (Optional) |
| Wavelength | 1080 ±10 nm |
| Working Mode | Continuous / Pulsed |
| Welding Thickness | 0.5–6 mm (Depends on material & power) |
| Welding Speed | Up to 120 mm/s |
| Cutting Thickness | Up to 3 mm (for thin metal sheets) |
| Cleaning Width | 0–100 mm (Adjustable) |
| Laser Head | 5-in-1 Multi-Function Head (Welding / Cutting / Cleaning / Polishing / Marking) |
| Fiber Length | 10 m (Optional 15 m) |
| Cooling System | Industrial Water Chiller |
| Power Supply | AC 220V / 380V ±10%, 50–60 Hz |
| Machine Dimensions | 1800 × 900 × 1500 mm (Reference) |
| Machine Weight | 180–350 kg (Reference) |
| Applicable Materials | Stainless steel, carbon steel, aluminum, brass, copper alloys |
| Control System | Touch Screen + Industrial Controller |
| Warranty | 2 Years (Laser source per brand standard) |
Advantages & Benefits
- Space & Cost Saving: One machine replaces multiple machines in your workshop.
- High Precision & Quality: Smooth welds, precise cutting, and clean finishing.
- Flexibility: Both handheld and automated production integration available.
- Long Lifespan: High-quality laser source ensures reliable operation for years.
- Low Operating Cost: Minimal consumables and low maintenance requirements.
- Wide Material Compatibility: Metals of various types and thicknesses can be processed.
