Discover unparalleled precision with our state-of-the-art fiber laser marking machine. Perfect for creating permanent, high-contrast markings on metals, plastics, and various industrial materials.

Unmatched Precision– Crisp, detailed, permanent markings.
Maintenance-Free– No consumables, lower costs.
Built to Last– Reliable 24/7 operation.
User-Friendly– Quick setup, intuitive controls.
Versatile Applications– Perfect for electronics, automotive, tools, and medical devices.

Specification	20W	30W	50W	100W
Laser Type	Fiber Laser	Fiber Laser	Fiber Laser	Fiber Laser
Wavelength	1064 nm	1064 nm	1064 nm	1064 nm
Pulse Frequency	20–200 kHz	20–200 kHz	30–300 kHz	30–400 kHz
Engraving Depth	≤0.3 mm	≤0.4 mm	≤0.5 mm	≤0.8 mm
Marking Speed	≤7000 mm/s	≤8000 mm/s	≤10000 mm/s	≤12000 mm/s
Min. Line Width	0.01 mm	0.01 mm	0.015 mm	0.02 mm
Min. Character Height	0.15 mm	0.15 mm	0.2 mm	0.2 mm
Marking Area	110×110 mm	110×110 / 175×175 mm	150×150 / 200×200 mm	200×200 / 300×300 mm
Cooling Method	Air Cooling	Air Cooling	Air Cooling	Air/Water Cooling
Power Supply	AC 110V / 220V ±10%	AC 110V / 220V ±10%	AC 110V / 220V ±10%	AC 110V / 220V ±10%
Control Software	EZCAD (Windows)	EZCAD (Windows)	EZCAD (Windows)	EZCAD (Windows)
Applicable Materials	Metals, plastics, leather, ceramics, etc.	Metals, plastics, leather, ceramics, etc.	Metals, plastics, leather, ceramics, etc.	Metals, plastics, leather, ceramics, etc.

Material	Fiber Laser Marking Machine	CO₂ Laser Marking Machine	UV Laser Marking Machine
Metal	✔	✖	✔
Stainless Steel	✔	✖	✔
Aluminum Alloy	✔	✖	✔
Copper	✔	✖	✔
Plastic	✔	✔	✔
Leather	✖	✔	✔
Wood	✖	✔	✔
Paper	✖	✔	✔
Glass	✖	✔	✔
Acrylic	✖	✔	✔
Ceramics	✔	✖	✔
Rubber	✖	✔	✔
Semiconductor Materials	✔	✖	✔
Medical Device Plastics	✔	✖	✔

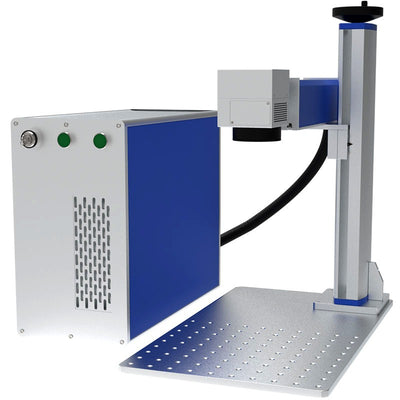

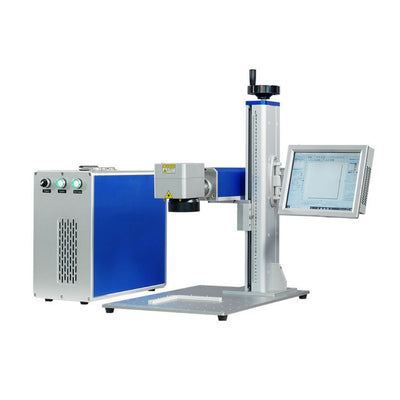

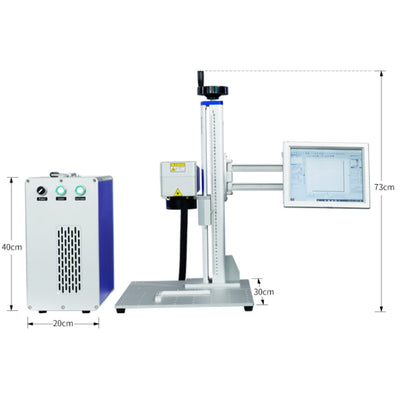

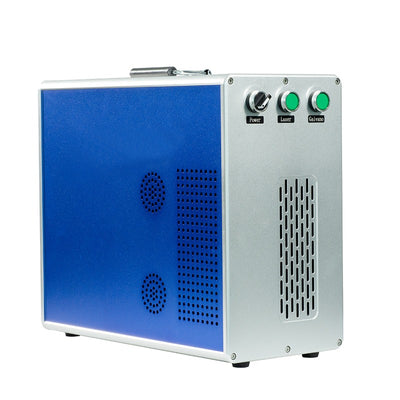

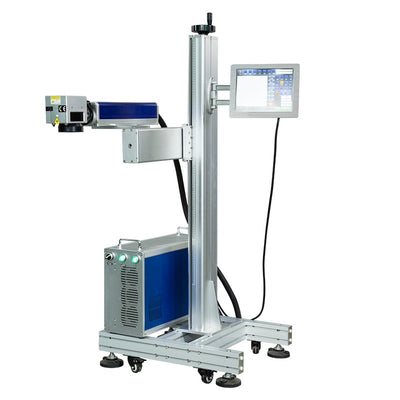

Portable Split Fiber Laser Marking Machine
