Model	20W / 30W / 50W / 100W
Estimated Laser Service Life	100,000 hr
Laser Wavelength	1064nm
Working Area	110×110mm / 150×150mm / 175×175mm / 200×200mm / 300×300mm
Laser Power	20W / 30W / 50W / 60W / 100W
Supported Image Formats	.bmp, .gif, .jpg, .jpeg, .dxf, .dst, .ai
Software	Ezcad / BSL / LightBurn
Laser Source	MAX / Raycus / JPT / IPG
Rotary	Rotary / 3D Working Table / Pen Rotary
Repeatability Accuracy	±0.01mm

Laser Source
Raycus/MAX/IPG/JPT, multiple choice. Different brands, different laser power are available. The higher power, the faster marking speed.Also supply CO2 laser, UV laser, MOPA laser, green laser, etc.

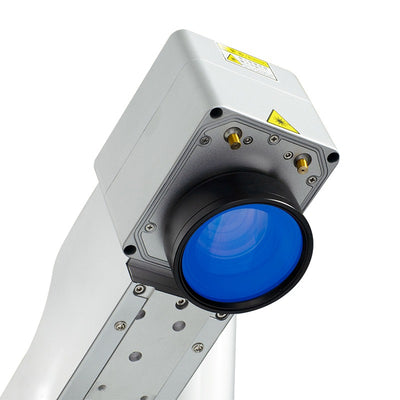

Galvanometer
Two high speed motor control reflect lens inside the head, which give the machine max 7000mm/smarking speed.
Supply different brand and mode, also could make the auto focus type, and the 3D type.

Field Lens
110*110mm, 175*175mm, 200*200mm (standard), 3000*300mm, different lens. Same laser power with the smaller lens will have the faster marking speed.Also supply the big size, like 400*400mm,500*500mm,700*700mm.

Control Software
Famous brand original EZCAD control system with high stability and easy operation , good performance.

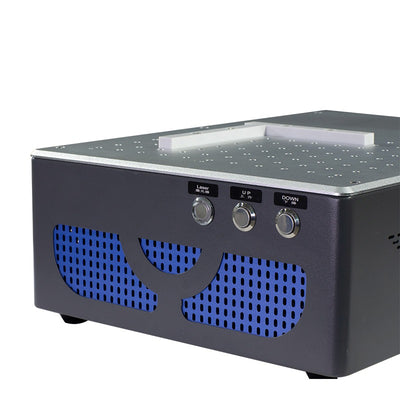

Control Button
Humanized control system, easy to operate, dust
proof design.

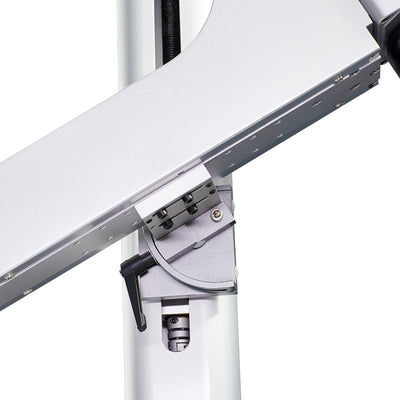

Lifting Handle
To rotate the handle to adjust the height to get
focus of laser as per the work piece . it is for
500mm height adjustable.

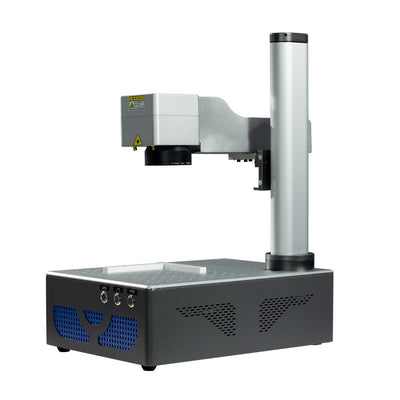

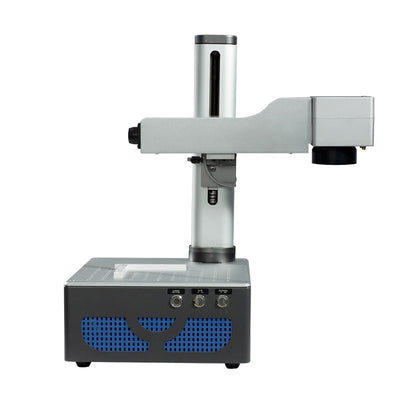

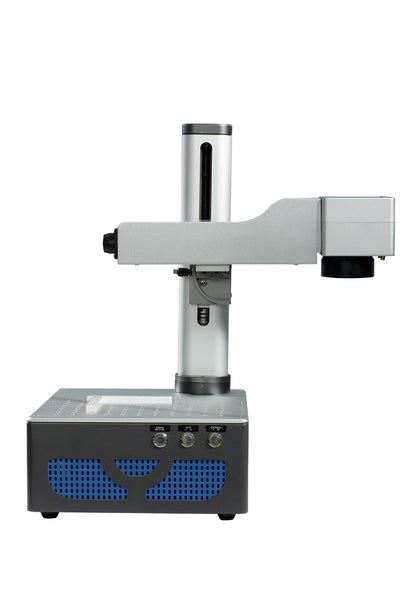

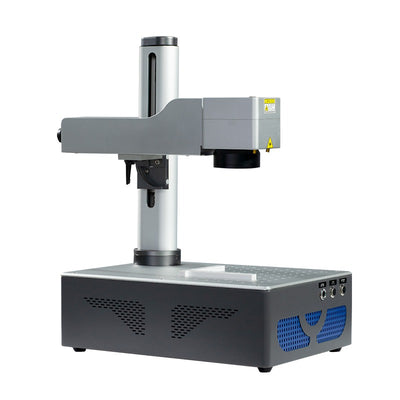

Mini Fiber Laser Marking Machine
