Short Description

The Desktop Fiber Laser Marking Machine is designed for high-speed, permanent marking on metals and selected plastics. Featuring a high-performance galvo scanning system, premium fiber laser source, and user-friendly EZCAD software, it delivers exceptional precision, reliability, and efficiency for industrial production.

Ideal for engraving logos, serial numbers, QR codes, barcodes, text, graphics, and customized designs on stainless steel, aluminum, brass, copper, titanium, plastics, and more.

Why Choose Our Fiber Laser Marking Machine

✔ Ultra-Fast Marking Speed

Up to 12,000 mm/s high-speed marking for increased productivity.

✔ Permanent & High Contrast Marking

Create durable, wear-resistant marks without fading or damaging the material.

✔ High Precision

Marking accuracy up to 0.01 mm, suitable for fine graphics and micro text.

✔ Maintenance-Free Fiber Laser

Industrial-grade fiber laser source with a service life of up to 100,000 hours.

✔ Compact Desktop Design

Space-saving structure with integrated air cooling, ideal for workshops and factories.

Key Features

Premium Fiber Laser Source

Optional Power:
- 20W
- 30W
- 50W
- 60W
- 100W

Compatible with Raycus, MAX, and JPT laser sources according to customer requirements.

High-Speed Galvo Scanner

Fast response
Stable performance
Excellent beam control

Precision Field Lens

Provides high light transmittance for clear, fine, and consistent marking results.

Adjustable Lifting Column

Manual lifting handle with precision scale ruler for easy and accurate focal adjustment.

Intelligent Control System

EZCAD2 Software
Optional EZCAD3
User-friendly interface
Supports multiple languages
Easy operation for beginners and professionals

Efficient Air Cooling

Built-in air cooling system ensures reliable heat dissipation and maintenance-free operation.

Applications

Perfect for:

Metal Nameplates
Automotive Parts
Hardware Tools
Electronic Components
Medical Devices
Jewelry
Gift Customization
Kitchenware
Promotional Products
Industrial Parts
QR Code & Barcode Marking
Logo Engraving

Applicable Materials

Metals

Stainless Steel
Carbon Steel
Aluminum
Brass
Copper
Titanium
Iron
Gold
Silver

Plastics

ABS
PVC
PC
PA
POM
Acrylic

Other Materials

Leather
Wood
Coated Metal
Painted Metal
Anodized Aluminum

Technical Specifications

Item	Specification
Machine Type	Desktop Fiber Laser Marking Machine
Laser Power	20W / 30W / 50W / 60W / 100W
Laser Type	Fiber Laser
Laser Wavelength	1064 nm
Standard Marking Area	110 × 110 mm
Optional Marking Area	150×150 / 175×175 / 200×200 / 300×300 mm
Marking Speed	Up to 12,000 mm/s
Marking Accuracy	0.01 mm
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeat Accuracy	±0.001 mm
Laser Lifetime	100,000 Hours
Cooling Method	Built-in Air Cooling
Power Supply	AC 110V / 220V ±10%, 50/60Hz
Software	EZCAD2 (Optional EZCAD3)
Supported Formats	AI, DXF, PLT, BMP, JPG, PNG, TIF
Operating System	Windows 7 / 8 / 10 / 11
Operating Temperature	0–40°C
Humidity	20–80% (No Condensation)
Machine Size	600 × 400 × 700 mm
Net Weight	25 kg

Machine Structure

The machine consists of premium industrial components to ensure stable performance and long-term reliability:

High-Speed Galvo Scanner
Fiber Laser Source
Precision Field Lens
Intelligent Control System
Adjustable Lifting Handle
Precision Scale Ruler
Aluminum Alloy Worktable
Built-in Air Cooling System

Standard Configuration

Fiber Laser Marking Machine
Fiber Laser Source
Galvo Scanning Head
Field Lens
Aluminum Worktable
EZCAD Software
Power Cable
USB Cable
Foot Switch (Optional)
Positioning Fixture (Optional)
User Manual
Tool Kit

Optional Configurations

Laser Power

20W
30W
50W
60W
100W

Laser Source

Raycus
MAX
JPT

Lens Options

110 × 110 mm
150 × 150 mm
175 × 175 mm
200 × 200 mm
300 × 300 mm

Rotary Attachment

Optional rotary axis for marking:

Rings
Cups
Pipes
Cylinders
Bottles

Product Advantages

High-Speed Marking
High Precision
Stable Performance
Long Laser Lifetime
Maintenance-Free Design
Compact Structure
Easy Operation
Industrial Grade Quality
Low Operating Cost
Wide Material Compatibility

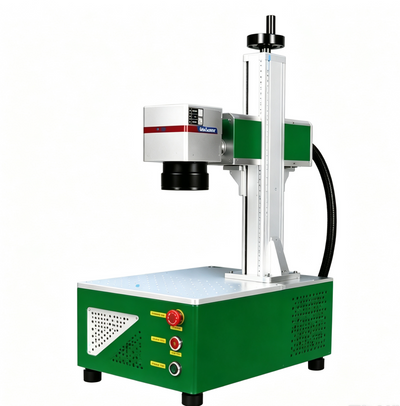

Desktop Fiber Laser Marking Machine | 20W / 30W / 50W / 60W / 100W Metal Laser Engraver
