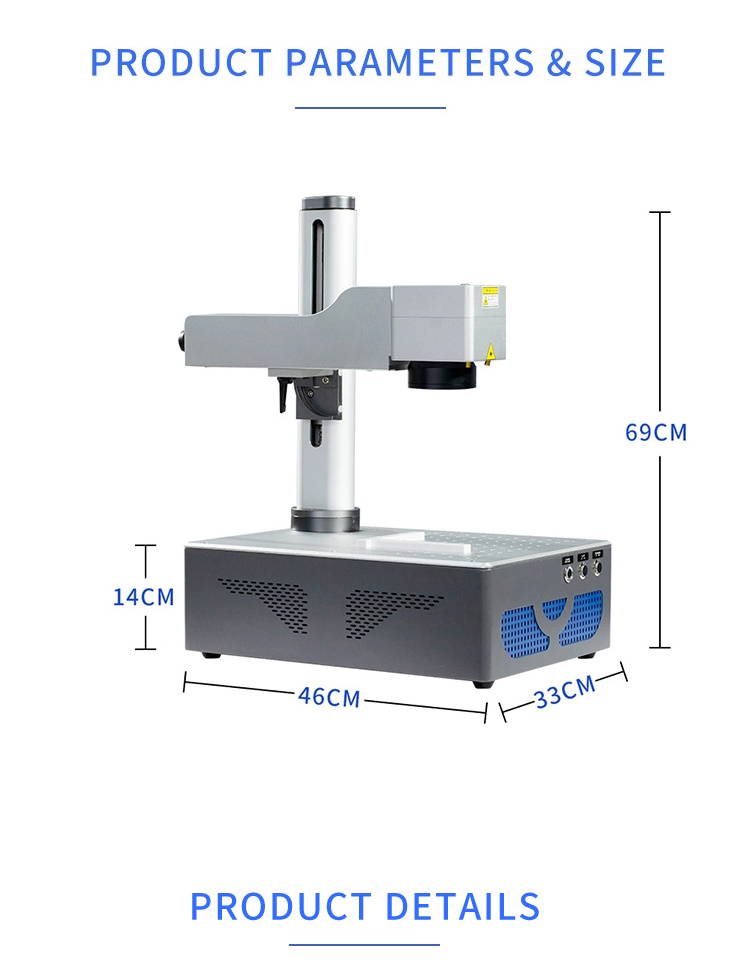

Product parameters：
| Model | 20W 30W 50W 100W |
|---|---|
| Working Area | 110*110mm/150*150mm/175*175mm/200*200mm/300*300mm |
| Repeatability Accuracy | ±0.01 mm |
| Laser weave length | 1064nm |
| Laser Power | 20w /30w /50w /60w /100w |
| Laser Source | MAX /Raycus /JPT/IPG |
| Software | Ezcad/BSL/Light burn |
| Supported Image Formats | bmp, .gif, .jpg, .jpeg, .dxf, .dst, .ai |
| Est. Laser Service Life | 100,000 hr |
| Rotrary | Rotary/3D Working Table/Pen Rotary |
Product details：
 |  |
| Laser Source Raycus/MAX/IPG/JPT, multiple choice. Different brands, different laser power are available. The higher power, the faster marking speed.Also supply CO2 laser, UV laser, MOPA laser, green laser, etc. | Galvanometer Two high speed motor control reflect lens inside the head, which give the machine max 7000mm/smarking speed. Supply different brand and mode, also could make the auto focus type, and the 3D type. |
 |  |
| Field Lens 110*110mm, 175*175mm, 200*200mm (standard), 3000*300mm, different lens. Same laser power with the smaller lens will have the faster marking speed.Also supply the big size, like 400*400mm,500*500mm,700*700mm. | Control Software Famous brand original EZCAD control system with high stability and easy operation , good performance. |
 |  |
| Control Button Humanized control system, easy to operate, dust proof design. | Lifting Handle To rotate the handle to adjust the height to get focus of laser as per the work piece . it is for 500mm height adjustable. |

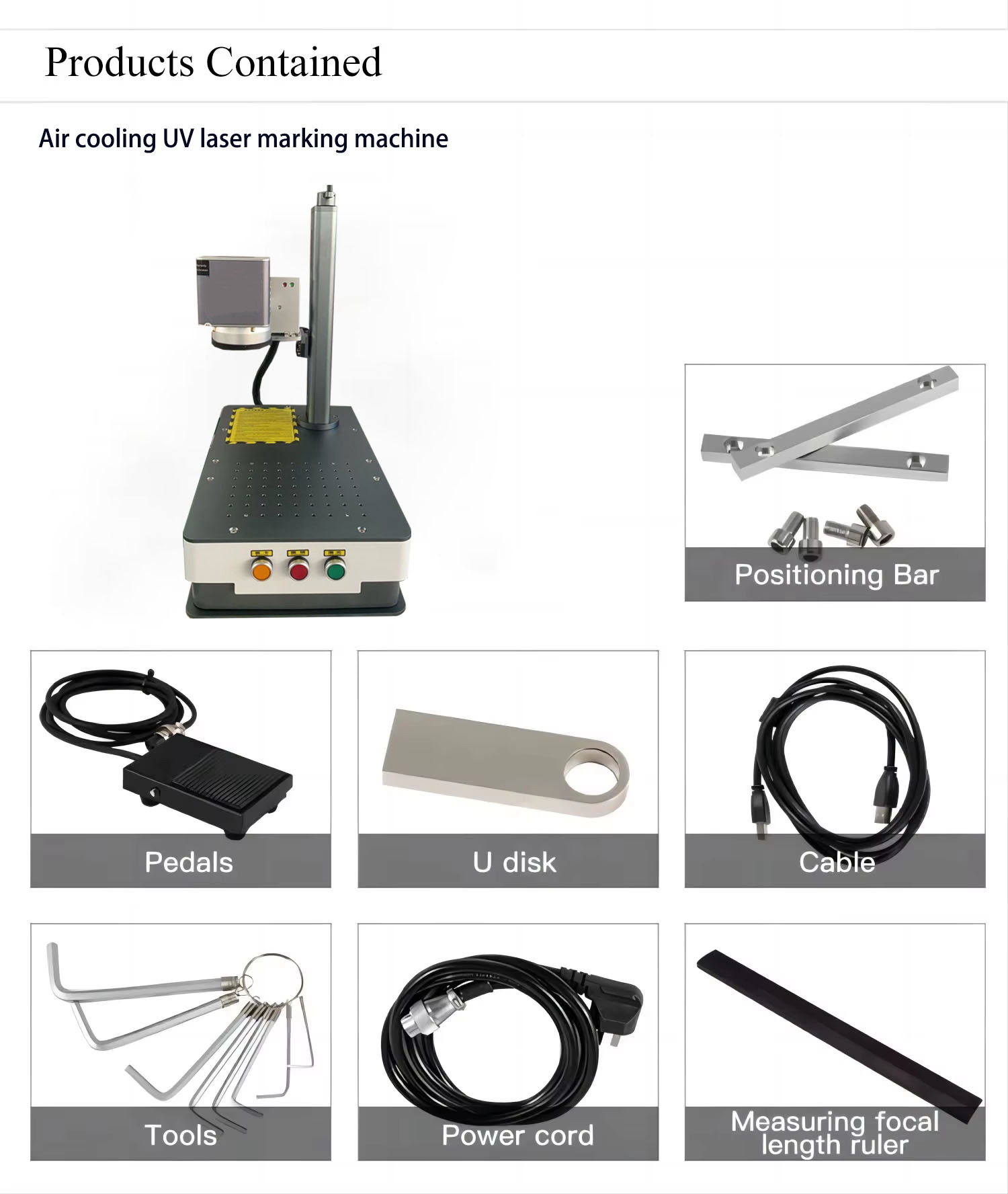

| Power Cord *1 | USB Cable *1 |
| USB Flash Drive *1 | Ruler *1 |
| Hex Wrench Set *1 | Installation Screw Set *1 |
| Pair of Safety Goggles *1 | Remote Control Terminal *1 |
| Screwdriver *1 | Manual *1 |
