XT Series Laser Cleaning Machines
Our XT Series Laser Cleaning Machines deliver high-performance, reliable and environmentally friendly cleaning solutions for a wide range of industrial applications. Designed with advanced fiber laser technology and robust mechanical structures, these machines ensure efficient removal of rust, paint, oil, contaminants, and scale without damaging the base material.
Continuous Laser Cleaning Machines (1500W, 2000W, 3000W)
The XT continuous cleaning machines (models XT-1500W, XT-2000W, XT-3000W) feature high power fiber lasers designed for rapid, large-area surface cleaning. Equipped with advanced cooling systems and precision scanning heads, they deliver uniform cleaning with minimal thermal impact.
Key Features & Performance
- High average power output for fast and thorough cleaning
- Stable continuous wave laser ensures consistent energy delivery
- Integrated water cooling system for long duration operation
- Compact, rigid frame design reduces vibration for high precision
- Wide scanning range with adjustable cleaning parameters
- Easy operation with intuitive control interface

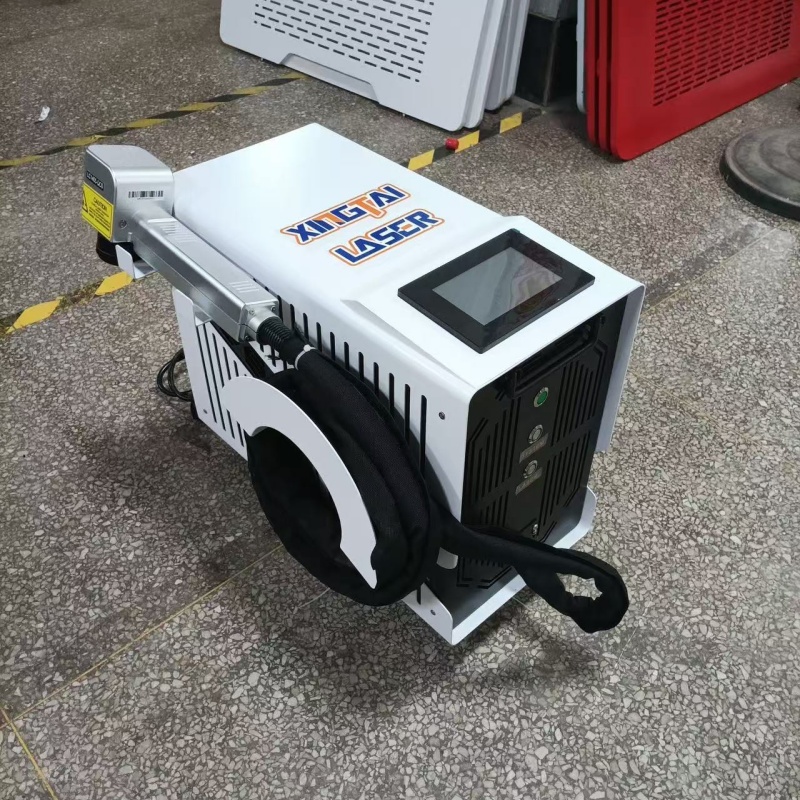

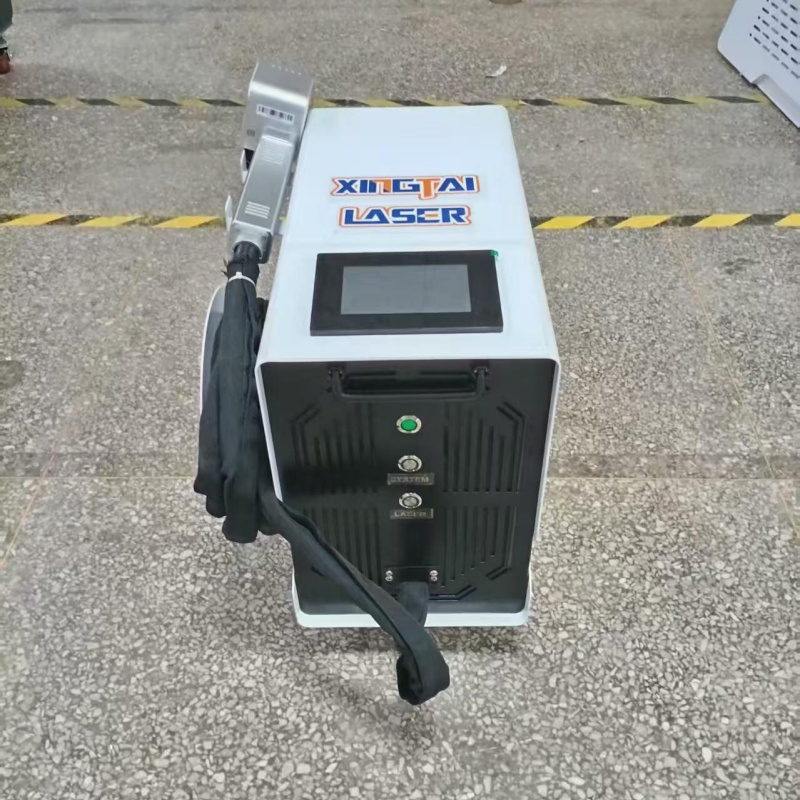

Pulse Laser Cleaning Machines (100W, 200W)
The XT pulse cleaning machines (models XT-100W and XT-200W) offer short, high-peak pulses ideal for delicate cleaning tasks requiring precise material removal without substrate damage. The compact and lightweight structure allows flexible deployment in various work environments.
Key Features & Performance
- High peak power pulses for effective micro-scale cleaning
- Low thermal impact with minimal heat affected zones
- Modular design enabling easy integration into production lines
- User-friendly touchscreen interface for parameter control
- Optimized beam quality for fine detail cleaning
- Portable design for manual or robotic arm use
Application Industries
Technical Specifications
| Model | Laser Power | Laser Type | Cleaning Mode | Cooling | Laser Wavelength | Weight | Dimension (L×W×H, mm) |
|---|---|---|---|---|---|---|---|
| XT-1500W | 1500W | Fiber Laser | Continuous Wave | Water Cooling | 1064 nm | 85 kg | 900×650×1250 |
| XT-2000W | 2000W | Fiber Laser | Continuous Wave | Water Cooling | 1064 nm | 90 kg | 900×650×1250 |
| XT-3000W | 3000W | Fiber Laser | Continuous Wave | Water Cooling | 1064 nm | 100 kg | 1100×700×1300 |
| XT-100W | 100W | Fiber Laser | Pulse | Air Cooling | 1064 nm | 12 kg | 500×300×350 |
| XT-200W | 200W | Fiber Laser | Pulse | Air Cooling | 1064 nm | 15 kg | 600×350×400 |
